Maico MB 11 BERAphone®
Evoked Response System
Product Code: BERAphone®

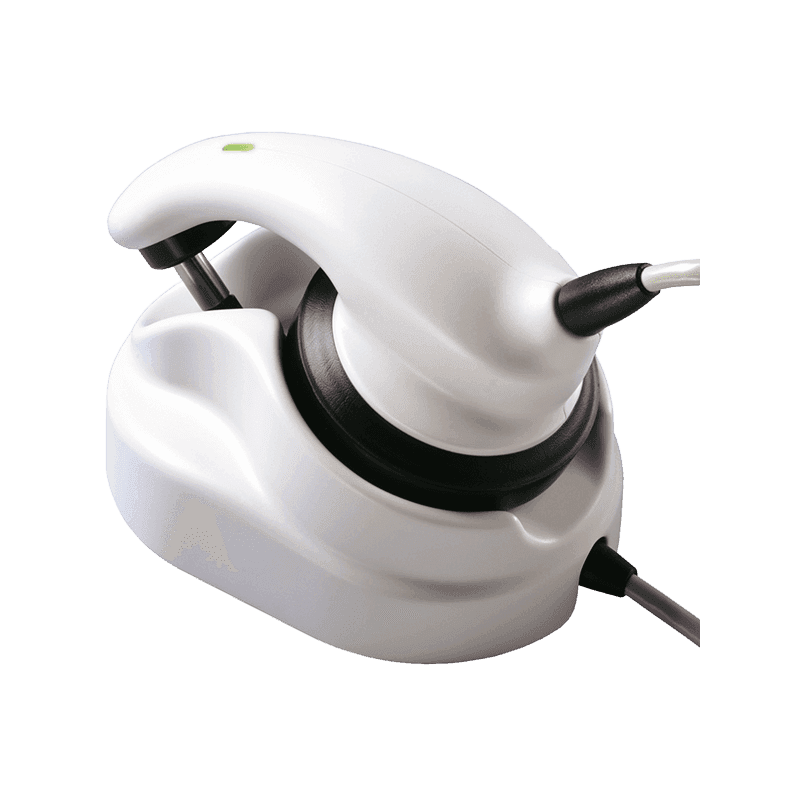

The MB 11 BERAphone® offers a fast automated ABR screening test for newborns. The patented BERAphone® includes the speaker, the electronic and the measuring electrodes in one unit. The cushioned earpiece allows testing without adhesive disposables, thus making it more comfortable for the baby. If a response at 35 dBnHL is detected and verified, the test result is PASS.
The CE-Chirp® stimulates all regions of the chochlea at the same time and thus generates much higher responses and faster results than a standard click. This leads to very reliable results under normal noisy conditions.
Key Features:
- Uses the patented CE-Chirp®.
- Uses integrated electrodes reducing cost for disposables.
- Automatic impedance check.
- Stimulation level of 35 dB(nHL).
- USB connection for power supply and data transfer.
- Utilises Windows XP., Windows 7 or Windows 8 operating systems.
Compliance
- IEC 601-1, BF according to medical device
directive 93/42/EEC - IEC 60645-7, Type 2
Dimensions
USB box W+D+H: 12 cm x 9 cm x 3 cm
USB box weight: 165 g
Want to know more?
Please visit the manufacturer’s website or download the product datasheet
